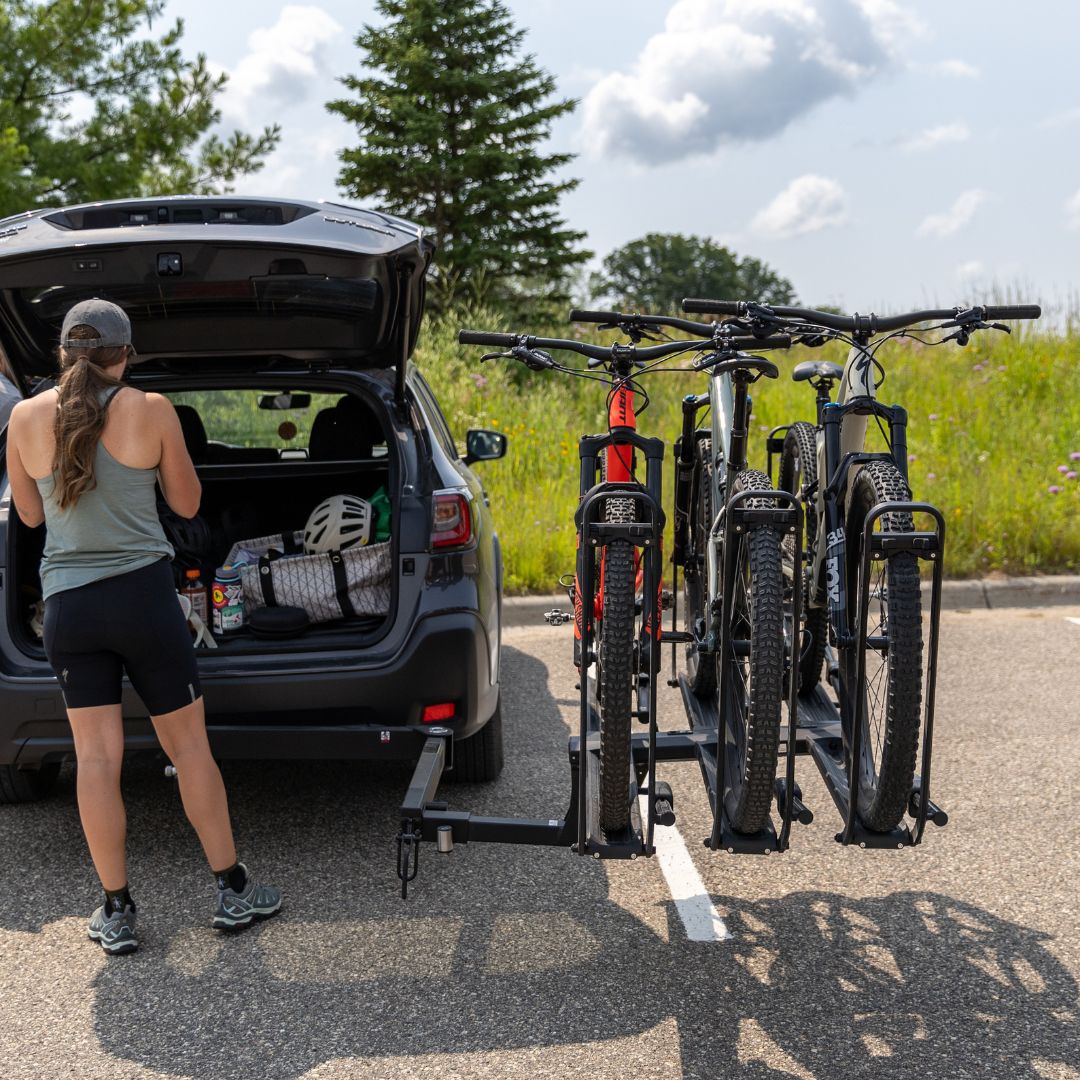

Increase your carrying capacity from two to four bikes in less time than it takes your friends to decide who gets to sit up front.
NV™ Base 2.0
Meet the Kuat NV Base 2-bike hitch rack. Take our NV 2.0, minus the Trail Doc, blast it with a matte black powder coat, and you’ll get our best-selling bike rack. Compatible with most bikes and vehicles and expandable for 3 or 4 bikes with Add-Ons sold separately.
Couldn't load pickup availability
Küat’s standard warranty will cover use of any of its 2-inch receiver hitch-mounted bicycle racks on some CLASS B RVs (as defined in 49 C.F.R. 571.3)*
*applies to 3 and 4-Bike (using Add-Ons)
This bike rack can safely transport bikes and electric bikes weighing up to 60 lbs. per tray before Add-Ons - see all weight capacities below.
2
60 lbs.
50"
5"
Features
Bikes not wanting to share space nicely? Easily dial in the fit with adjustable tire scoops. With three positions to choose from, handlebar and seat post clearance are never an issue.
Fold your NV Base 2.0 up or down with the convenient patented foot pedal.
Seamlessly integrated locks—long enough to fit any frame—make sure your bike stays off Craigslist while you enjoy that post-ride beer stop. And when you’re ready to roll again, they stow right back into the rack.
Part of the reason we call it the NV Base 2.0 is because it doesn't come equipped with the Trail Doc. If you want to add the Trail Doc later, you can. The matte black Trail Doc can be purchased as an accessory and added at any time. And, just because it's the base version of our NV 2.0 doesn't mean it's basic. Trust us.
This bike rack is all metal and can safely transport bikes and electric bikes weighing up to 60 lbs. per tray.
Specifications
NV Base 2.0 2-Bike Rack
2”, 2-Bike Rack: 60 lbs. per tray
1.25”, 2-Bike Rack: 60 lbs. per tray
Holds wheelbases up to 50” and tires up to 5" (with use of the Phat Tire Kit - one kit included)
Dedicated 2” model is able to carry up to 3 or 4 bikes with an optional NV 2.0 Add-On.
NV Base 2.0 Add-Ons (*2” models only)
3-Bike configuration (using +1-Bike Add-On): 50 lbs. per tray
4-Bike configuration (using +2-Bike Add-On): 40 lbs. per tray
NV Base 2.0 2-Bike Rack
1.25”, 2-Bike Rack: 52 lbs.
2”, 2-Bike Rack: 52 lbs.
NV Base 2.0 Add-Ons (*2” models only)
+1-Bike Add-On: 26 lbs. / 89 lbs. in 3-Bike configuration: 50 lbs. per tray
+2-Bike Add-On: 48 lbs. / 111 lbs. in 4-Bike configuration: 40 lbs. per tray
SHIPPING WEIGHT
1.25”, 2-Bike: 63 lbs.
2”, 2-Bike: 65 lbs.
1-Bike Add-On: 32 lbs.
2-Bike Add-On: 51 lbs.
SHIPPING DIMENSIONS
2-Bike: 36” x 24” x 9”
1-Bike Add-On: 35” x 14” x 12”
2-Bike Add-On: 36” x 16” x 12”
EXPAND YOUR NV BASE 2.0
1-Bike Add-On
2-Bike Add-On
Compatible Accessories
NV Base 2.0 FAQ
What is the difference between the NV 2.0 and the NV Base 2.0?
The racks have two differences: color and the Trail Doc (bike stand feature at the end of the rack). The NV 2.0 has a metallic finish and comes with two color options - gray with orange anodized parts or black with gray anodized parts. The NV Base 2.0 is only available in matte black. The NV 2.0 comes standard with our built-in Trail Doc work stand, while that part is sold separately for the NV Base 2.0. The carrying capacity and the ability to expand to four bikes is the same for both models.
Is the 1.25” hitch size NV 2.0 compatible with Add-Ons?
No. Only the 2” hitch size NV Base 2.0 model will allow Add-Ons.
Can I use multiple Add-Ons at the same time? For example, a 1-Bike Add-On plus a second 1-Bike Add-On?
No. You can only use either one 1-Bike Add-On or one 2-Bike Add-On at a time.
Can I use the NV Base 2.0 Add-On on my original NV rack?
No. The NV rack was redesigned entirely in 2016, and the new 2.0 design will not allow the discontinued NV racks to be compatible.
I have difficulty lifting my heavy E-bike onto the trays. Do you offer a ramp for the NV 2.0 / NV Base 2.0?
Yes, you can read more about our Access Ramp here.
I see a Phat Bike Kit available for the NV 2.0 / NV Base 2.0. When should I use this accessory?
The Phat Bike Kit should be used for tires over 3.5" and/or with bikes that weigh over 35lbs.
Do you sell a license plate holder for the NV 2.0 / NV Base 2.0?
Yes! You can find more information on our NV Family License Plate Mount here.
The pinhole on my 1.25” rack does not line up with my receiver.
Not a problem! The rack is designed this way. The placement of the hole on the shank of your 1.25” rack is low from the center. This placement creates a happy medium between the two hitch receiver sizes (1.25” and 2”) and their respective pinhole locations. This allows the rack to fit in either a 2” or 1.25” hitch receiver. You must use the provided 3/8” hitch pin with these racks.
Should I lubricate my ratchet arms?
No. Any lubricant that makes contact with the anodized finish may cause damage. All moving parts for the ratchet arm are internal and arrive greased from the factory.
Should I lubricate my locks?
Yes! The locks will arrive lubed from the factory. Each time you lube up your bike chain, squirt a drop or two in the lock on your rack. This will prolong their life and make them easier to use.
Can I use a bike cover/rain cover with my rack?
Absolutely not! A cover would create a significant amount of wind resistance. The extra resistance would increase the strain on your hitch rack, causing it to break.
