Pivot™ XD Spare Tire Adapter

Pivot™ XD Spare Tire Adapter

SKU: A48-101-56-04

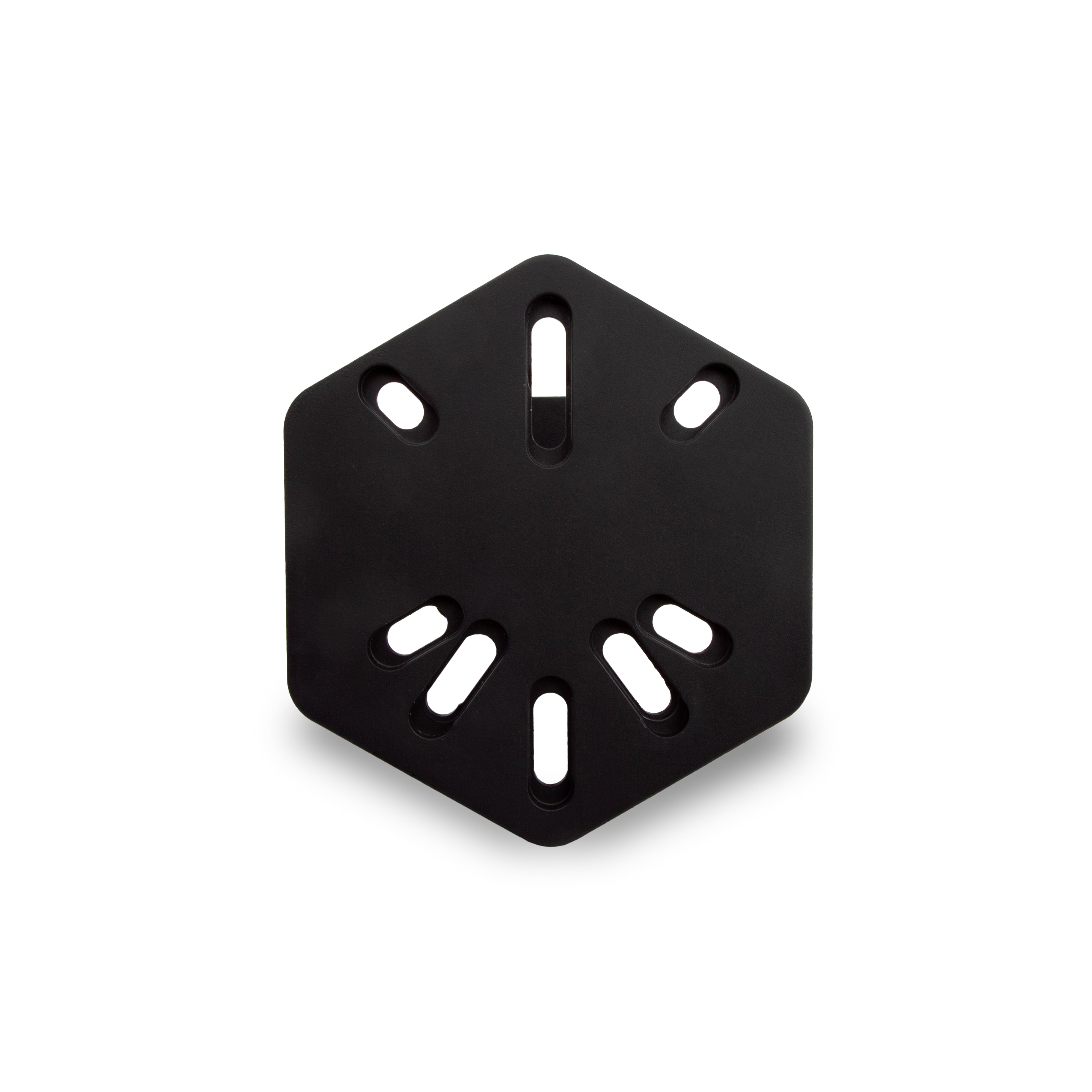

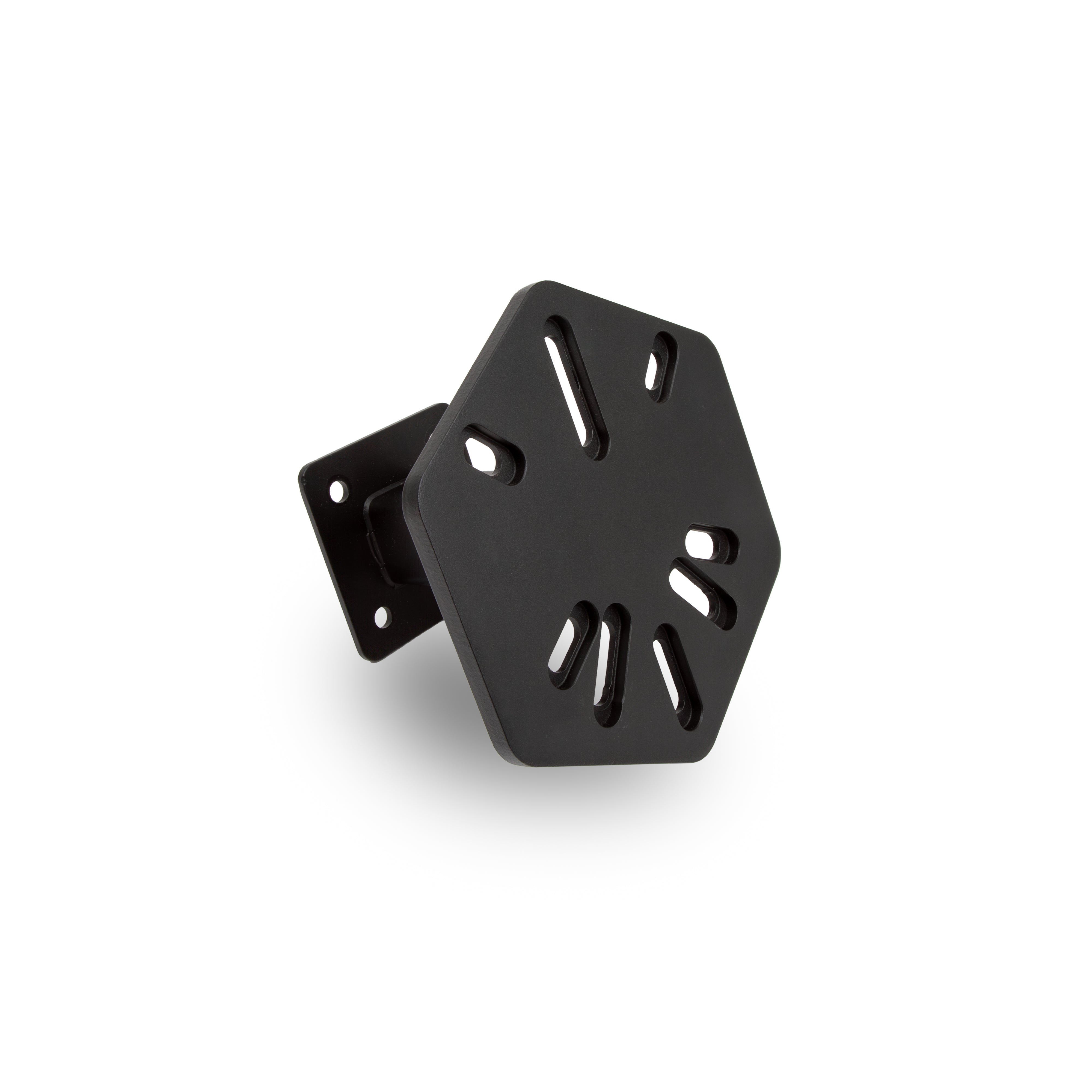

Carry a full-size spare tire into the backcountry with confidence. The Pivot XD Tire Carrier mounts directly to the Pivot XD Accessory Hoop with MOLLE Panel and fits tires up to 37 inches. Built from rigid steel with a premium matte black powder coat and offered in three wheel fitments.

Rack/Accessory Color
Rack/Accessory Size
$98.00
Out of stock
Description

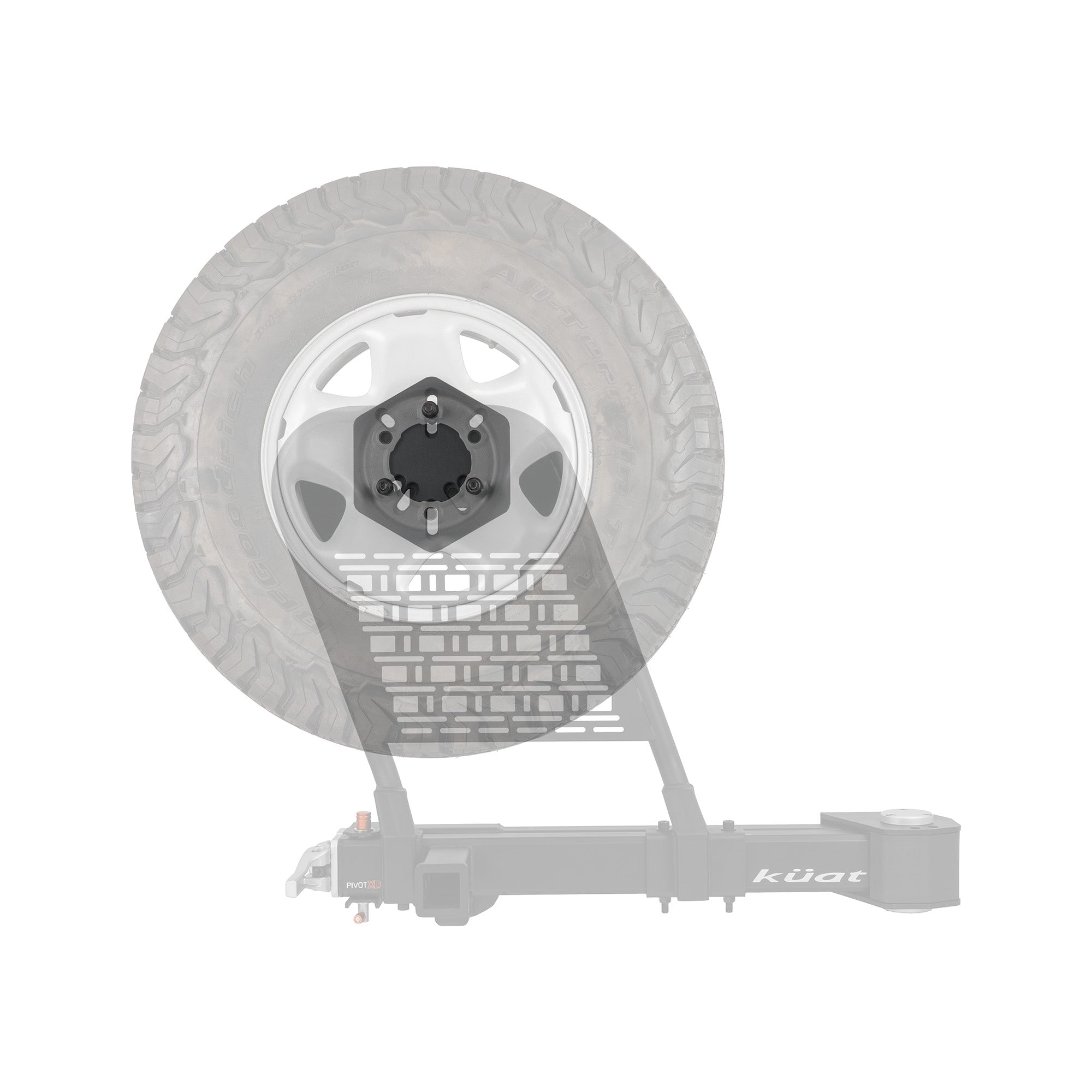

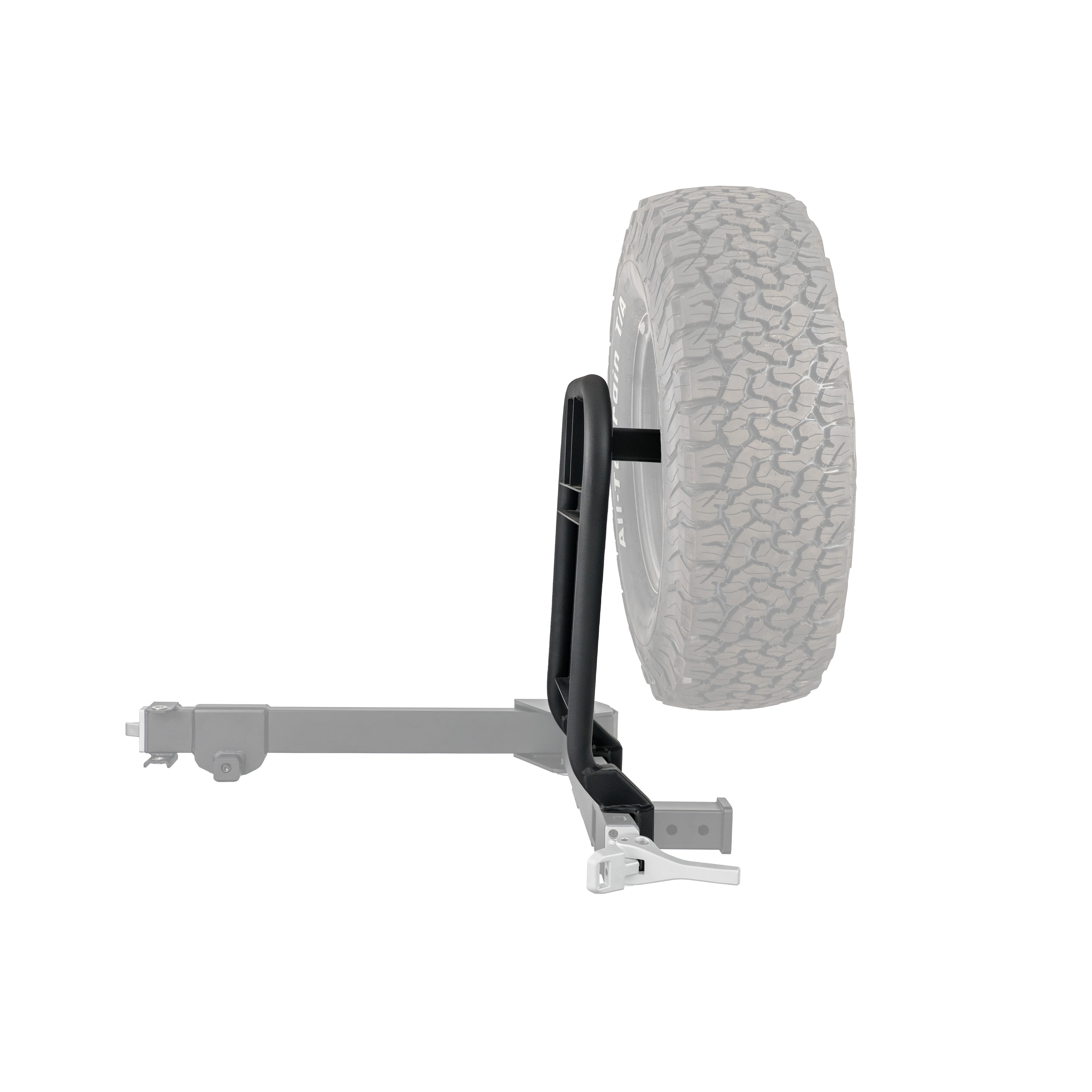

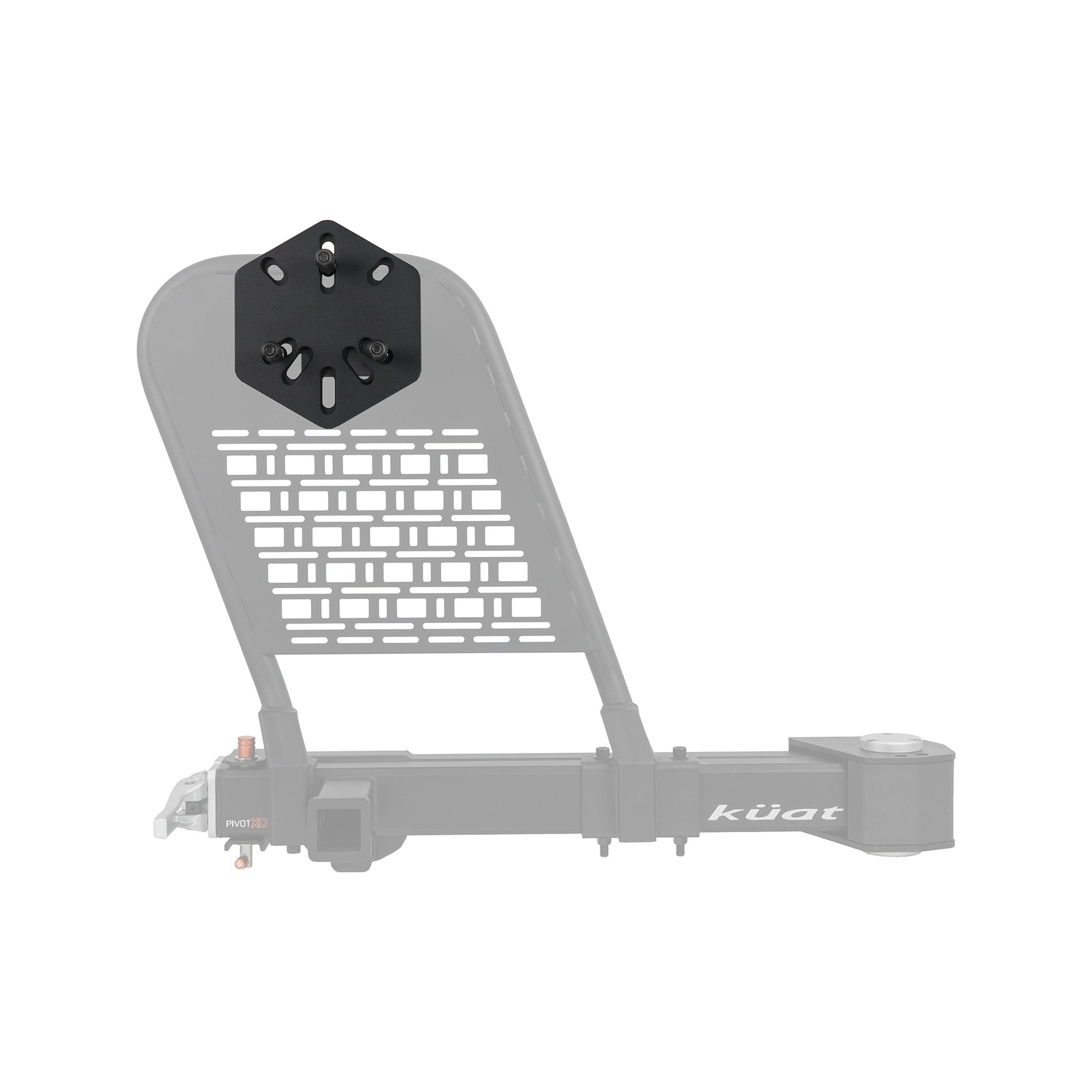

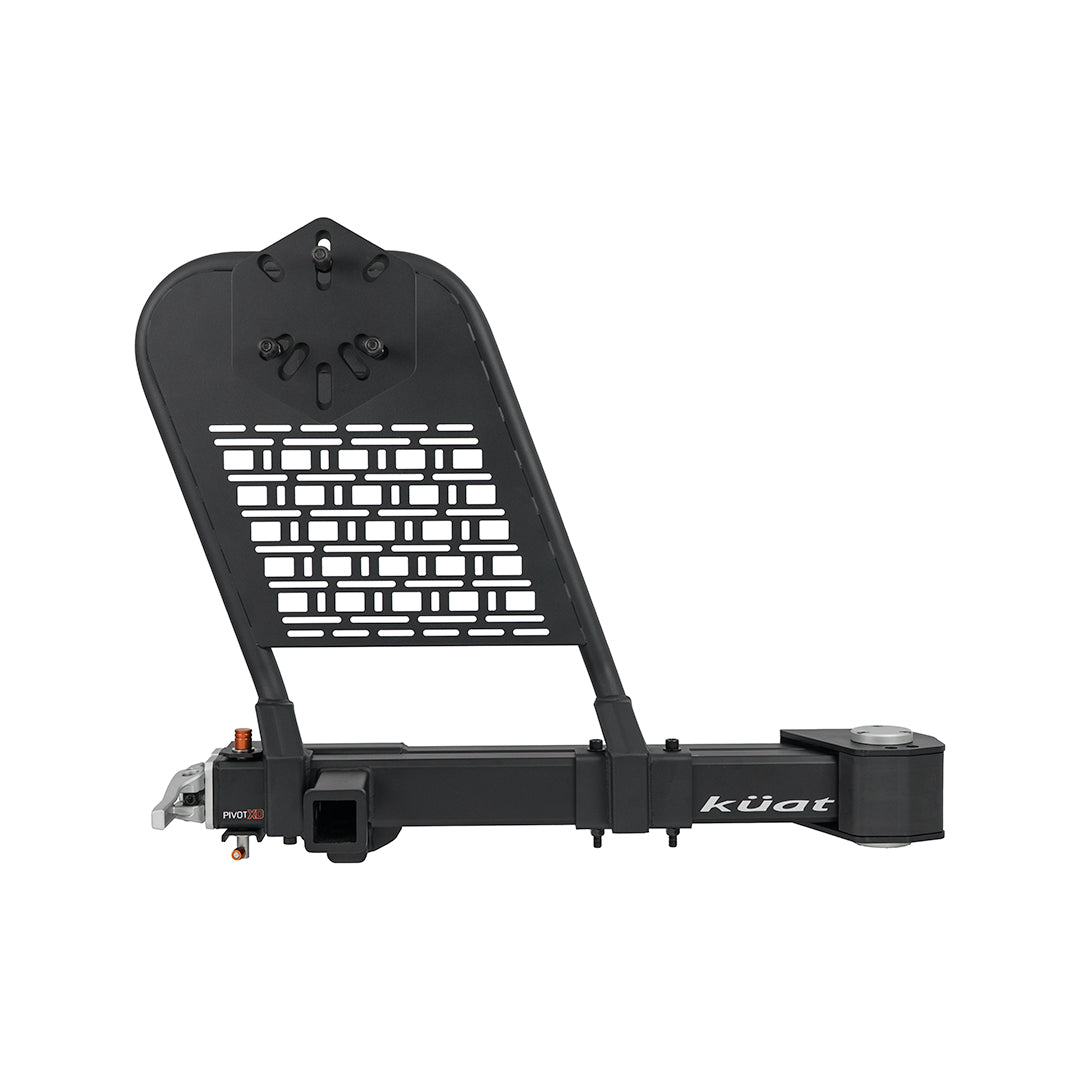

The Pivot XD Tire Carrier mounts directly to the Accessory Hoop with MOLLE Panel (required) for the Pivot XD swing-away hitch rack. Carry a full-size spare tire up to 37 inches in diameter, giving you the confidence to handle cross-country travel and rugged overland terrain.

Built from rigid steel and finished in a premium matte powder coat, this tire carrier is engineered for durability and a clean look. Offered in three wheel fitments, it includes hardware for most 5, 6, and 8 lug configurations to ensure a secure setup.

With a 100 lb. weight capacity and Kuat’s No Worries Limited Warranty, you can venture off the grid knowing your spare tire is locked in, solidly mounted, and ready for whatever the trail throws your way.
Highlights

  • 100 lbs. weight capacity
  • Three wheel fitments: 150 mm / 5.9 inches, 200 mm / 7.8 inches, and 250 mm / 9.8 inches
  • Fits most 5, 6, and 8 lug configurations
  • Max Tire diameter is 37 in

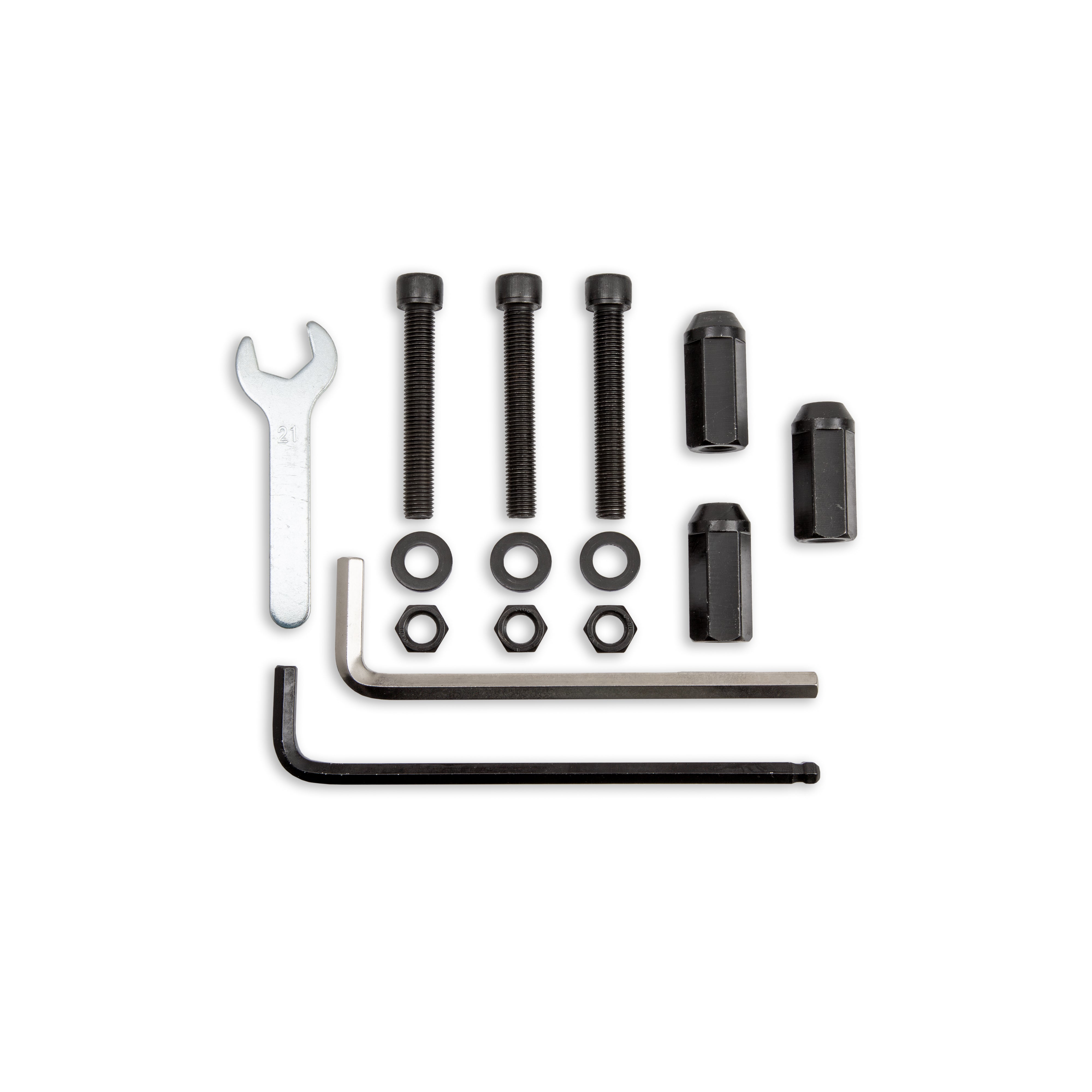

  • All hardware, 3 studs (75mm) and 3 lug nuts (M12 x 1.5) included
  • Rigid steel construction
  • Premium matte powder coat
  • No Worries Limited Warranty
Resources
Click here to sign up for back in stock notifications.
View details
Features
Premium Powder Coat

The Pivot XD and it’s accessories are finished with TIGER® DRYLAC®, a class-leading powder coat designed for the unforgiving conditions of both day-in, day-out commutes and epic road trips alike.

RIGID STEEL CONSTRUCTION

Built with adventure in mind, steel construction provides durability and strength.

AUTOMOTIVE GRADE HARDWARE

All mounting hardware is automotive-grade for maximum durability and corrosion resistance. Includes three 75 mm studs and three M12 x 1.5 lug nuts to support most 5, 6, and 8 lug wheel configurations.

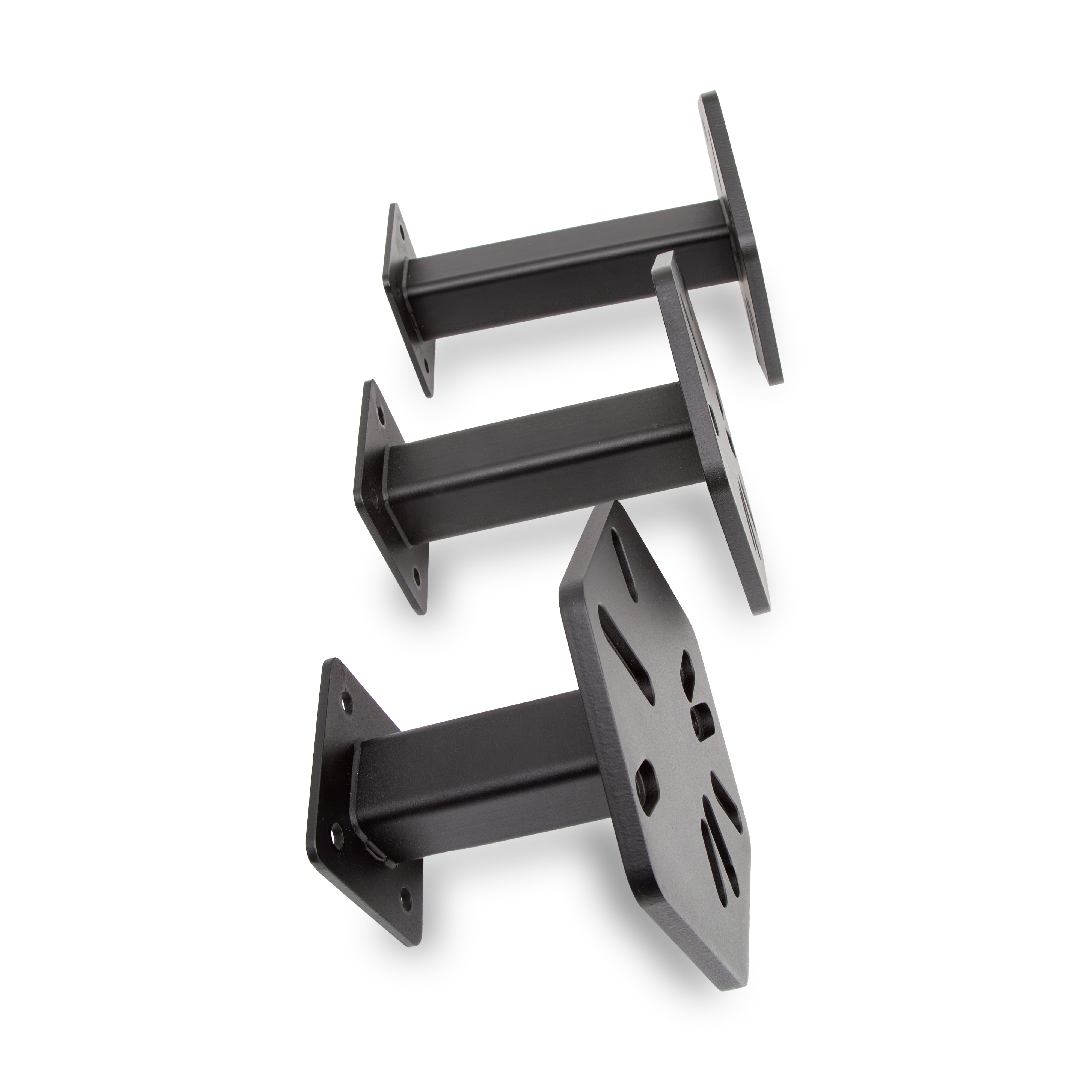

3 sizes

150 mm / 5.9 inches
200 mm / 7.8 inches
250 mm / 9.8 inches

View our sizing guide below on how to measure for wheel backspacing.
Specifications
CAPACITY

100 lbs maximum weight capacity

These accessories mount on top of the Pivot XD and do not reduce the rack’s total 350 lb capacity since they are positioned above the pivot. However, the weight installed on these accessories will contribute to the overall 350 lb limit for the Pivot XD.

If the MOLLE and tire mount are both loaded to their maximum capacities, the remaining rack or cargo installed into the Pivot XD is limited to 200 lbs.

The distance-to-weight rule (28"/40") applies to all racks or cargo installed into the Pivot XD receiver — excluding the MOLLE and spare tire accessories.

WEIGHT

Tire Adapter (150mm): 13 lbs
Rear Tire Adapter (200 mm): 14 lbs
Rear Tire Adapter (250mm): 15 lbs

DIMENSIONS

Product Dimensions

SHIPPING

Shipping Weight
Tire Adapter (150mm): 16 lbs
Tire Adapter (200mm): 17 lbs
Tire Adapter (250mm): 18 lbs

Shipping Dimensions
Tire Adapter (150mm): 12 x 8 x 10.5
Tire Adapter (200mm): 12 x 10 x 10.5
Tire Adapter (250mm): 12.5 x 12 x 10.5

How to Measure Backspacing

  1. Place a straight edge against the inside of your tire
  2. Measure from the mounting flange of your wheel to the straight edge (edge of tire)
  3. Choose a mount size: The measured distance must be equal to or less than the mount depth.

The tire mount size you select must be greater than this depth. This is to ensure you have enough mounting space for the wheel and tire. For example, if the measured backspace is 175mm, the 200mm adapter is required, but the 250mm adapter could be used instead to create extra space between the tire and the MOLLE panel.

Spare Tire & BIKES

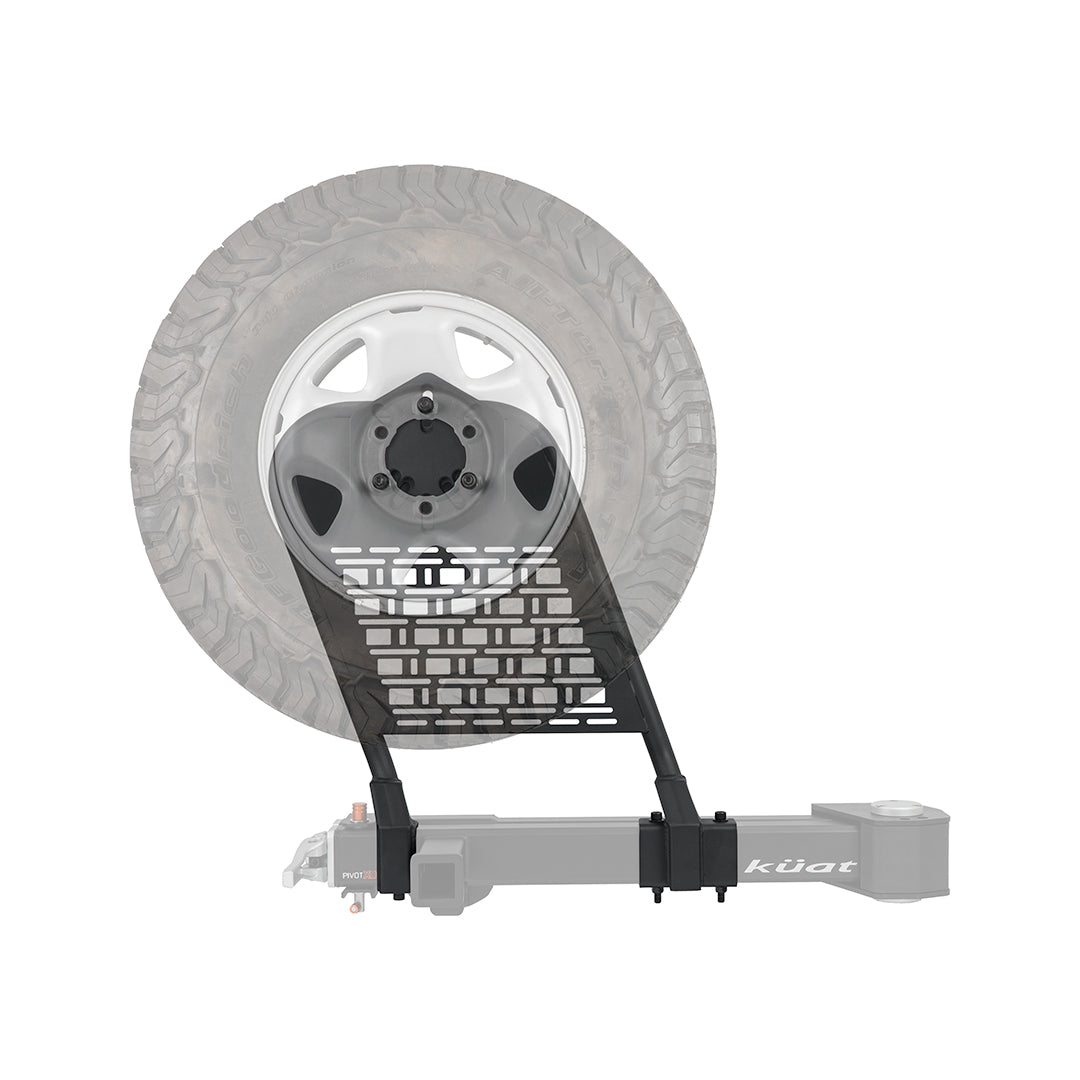

The Rear Tire Mount carries a full-size spare on the Accessory Hoop while your bike rack stays fully loaded and ready to roll. Always be ready.

FULLY OPERATIONAL BIKE RACKS

Fold your bike rack vertical in seconds—spare tire never moves. Instant clearance, cleaner profile, and your tire is still right where you need it.

Full Swing. Fully Loaded.

Open the Pivot XD with the Rear Tire Mount, spare tire, and fully loaded bike rack attached. Everything swings clear—no unloading, no drama.

Tailgate Down. Everything Up.

Drop the tailgate for full bed access while the spare tire, bike rack, and bikes stay securely mounted. Grab your gear without removing a thing.

Related Products

Quick buy
Pivot™ XD
$798.00
Quick buy

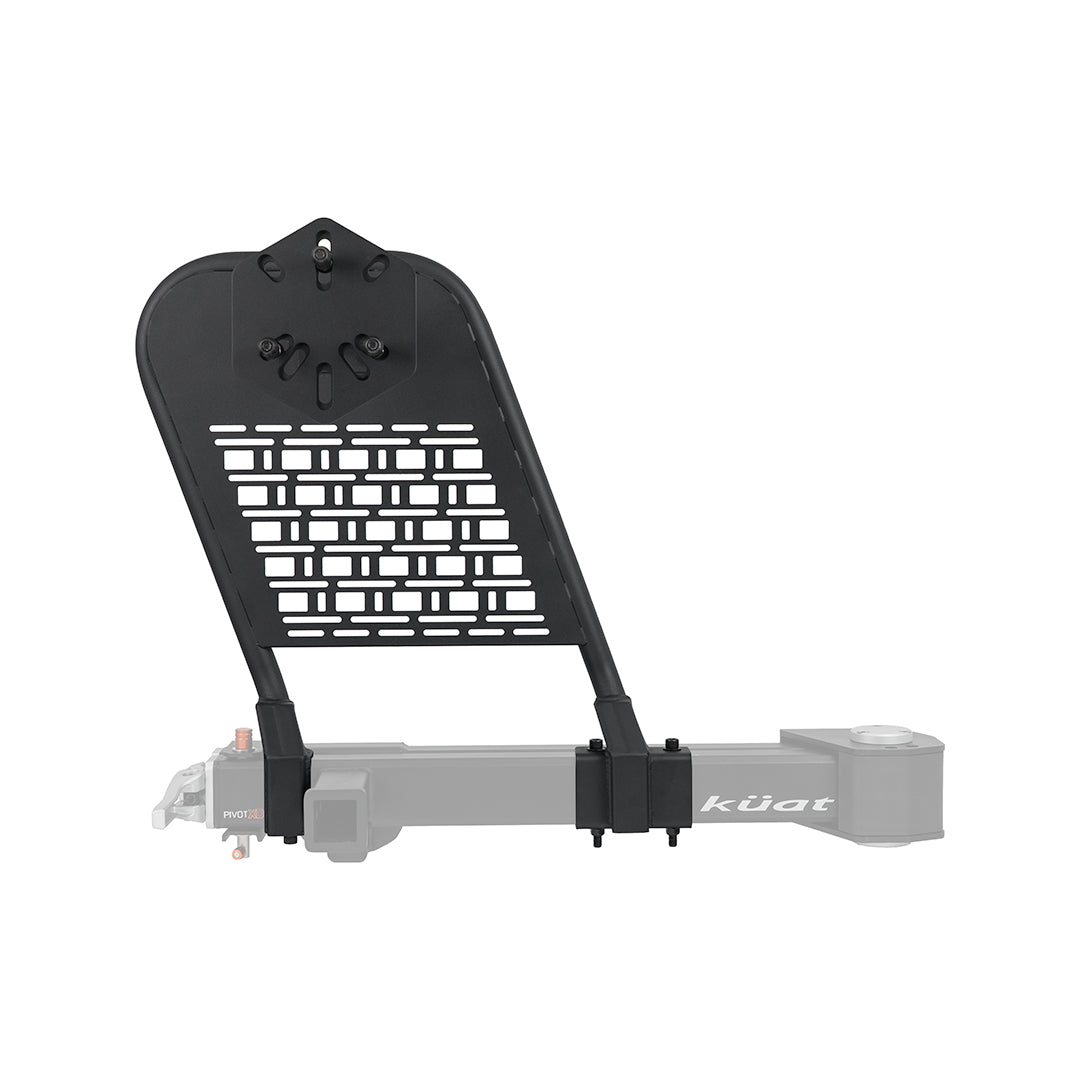

Pivot™ XD Accessory Molle Hoop
